PTE Pulp Test Equipment GmbH

Round Sample Punch Manual

Pulp, Paper, Cardboard & Tissue

Preparation of round tissue, paper and board samples to determine the grammage.

Full Description

Manually

Code: P.102.xxx

Use

For preparing round tissue, paper and cardboard samples for grammage determination.

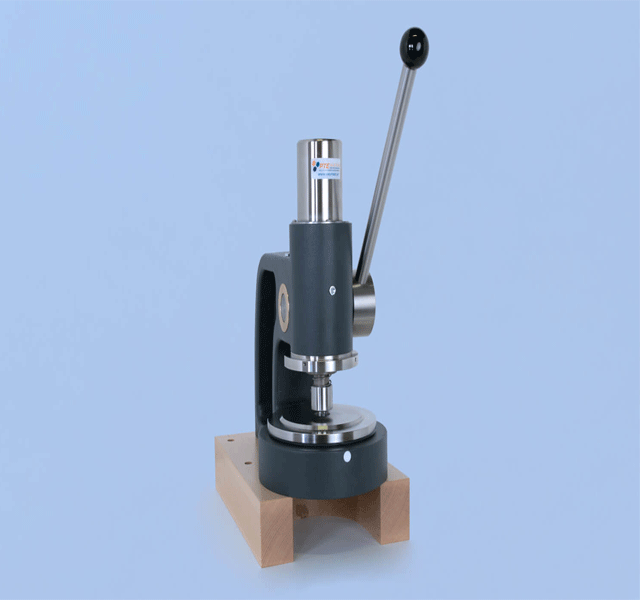

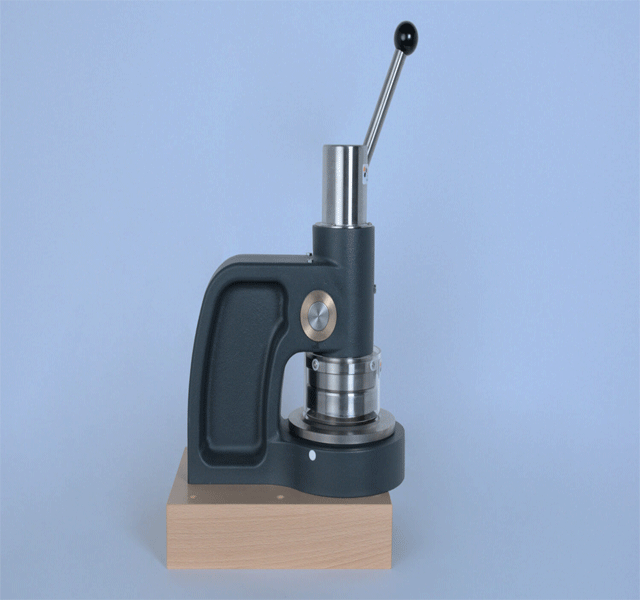

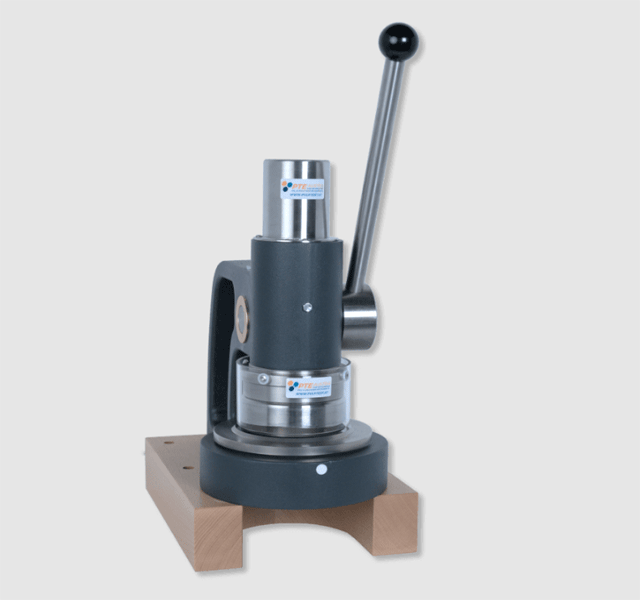

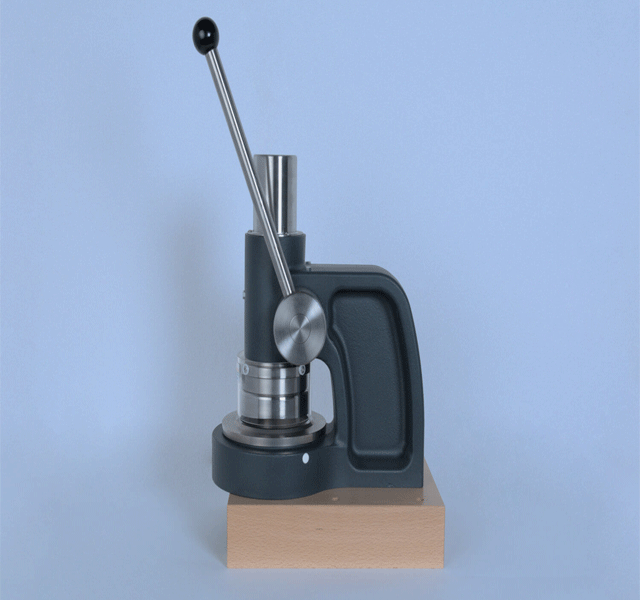

Device description

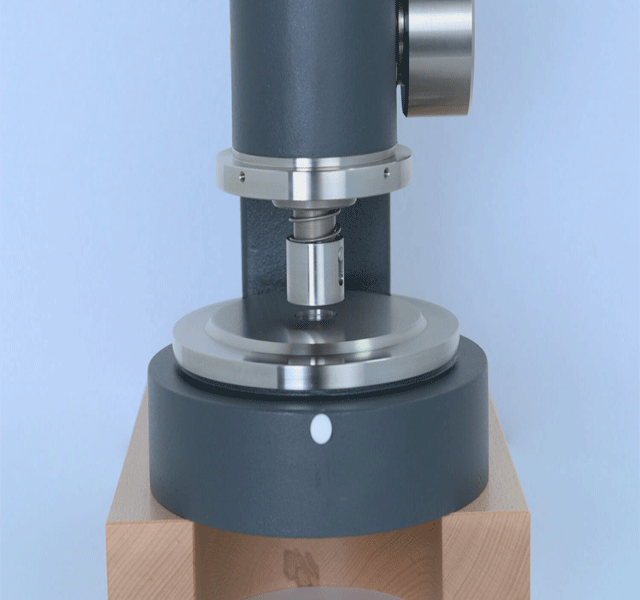

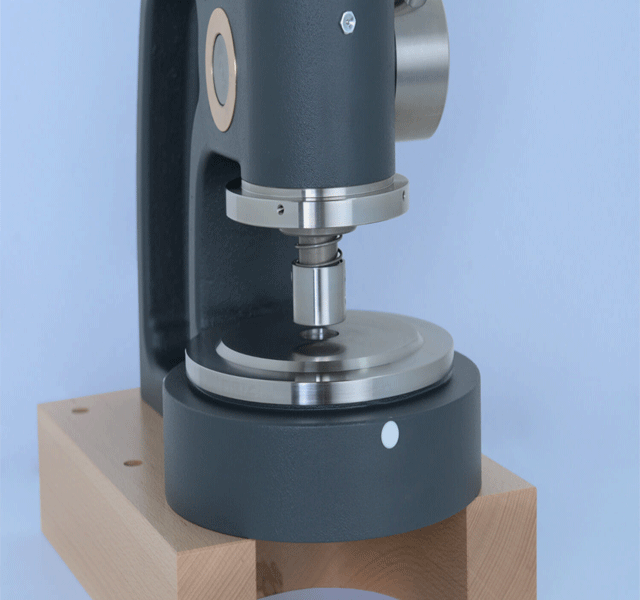

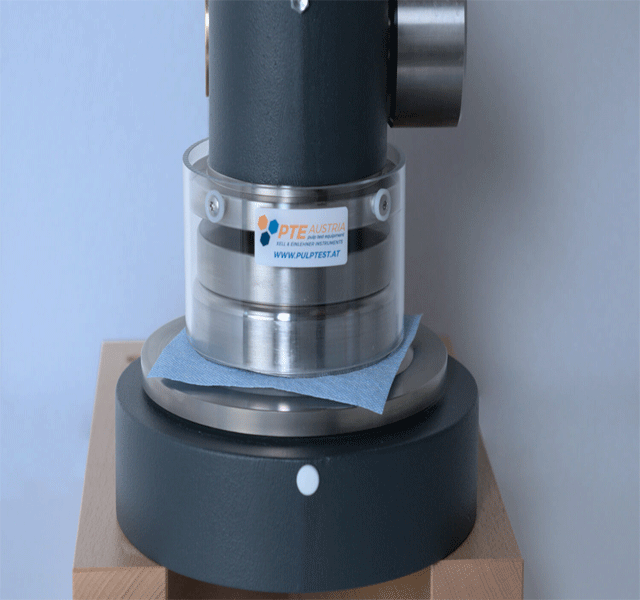

An extremely precise die cutter with a frame made of high-quality cast aluminum. The high-precision blade made of stainless tool steel enables the cutting of materials with a low grammage, such as tissue or cigarette paper, as well as kraftliner with a higher grammage: Tissue or cigarette paper as well as kraftliner with a higher grammage. The blade has a cutting gap of only 5 μm, which results in a very precise cutting edge, and works in a grammage range from 10 g/m² to 1 000 g/m². The special design prevents the paper from sagging and ensures that no injuries occur. The guide requires very little oil and the device is low-maintenance.

Features

  • High-quality materials and workmanship
  • different sizes available

Models

Code Description
P.102.015 Round Sample Punch with 15 cm²
P.102.050 Round Sample Punch with 50 cm²
P.102.100 Round Sample Punch with 100 cm²

Applicable standards

ISO 536; TAPPI T410 complies with CE safety standards
