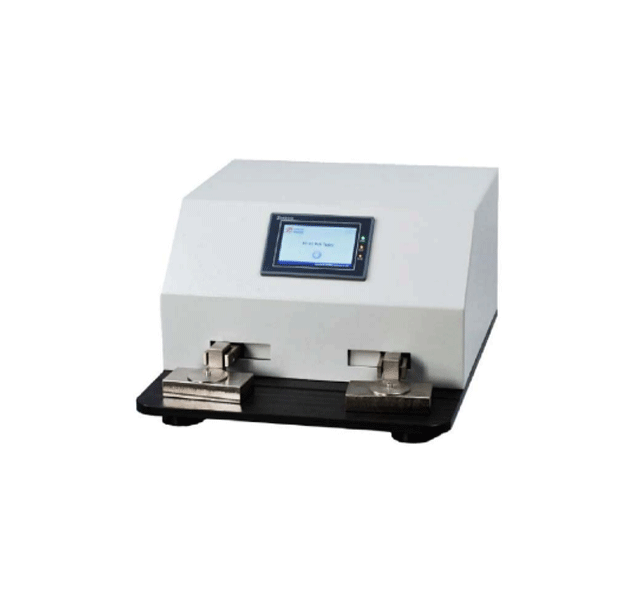

RUB-02 Rub Tester
RUB-02 Rub Tester is applicable in abrasion resistance testing of printed materials, PS boards and coating layers of other products. It can effectively analyze abrasion resistance, ink layer fastness and the coating rigidness of other products.
Full Description
CHARACTERISTICS
- Mini-computer control, LCD display
- Manual interface, PVC operation menu
- Applicable in dry or wet rubbing or scuffing, wet bleed, transfer, wet smear and functional tests
- Arc moving model
- Double testing station
- Four testing speeds
- Memory when power failure
- Buzzer alarm
Specifications
| Rubbing Pressure: | 8.9N (2lb), 17.8N (4lb) |
|---|---|
| Rubbing Speed: | 21, 42, 85, 106 CPM |
| Rubbing Motion: | To-and-fro arc motion |
| Rubbing Times: | 0–999,999 |
| No. of Specimens: | 1–2 pieces |
| Power: | AC 220V, 50Hz |
| Net Weight: | 40 kg |
Applicable standards
ASTM D5264, TAPPI T830
