PTE Pulp Test Equipment GmbH

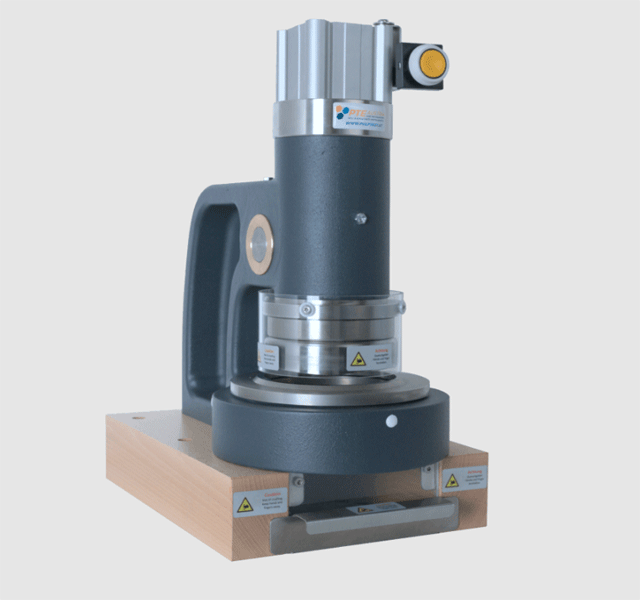

Sample Punch Pneumatic

Pulp, Paper, Cardboard & Tissue

For fast and practical pneumatic preparation of paper and cardboard samples.

Full Description

Code: P.105.xxx – P.106.xxx

Device description

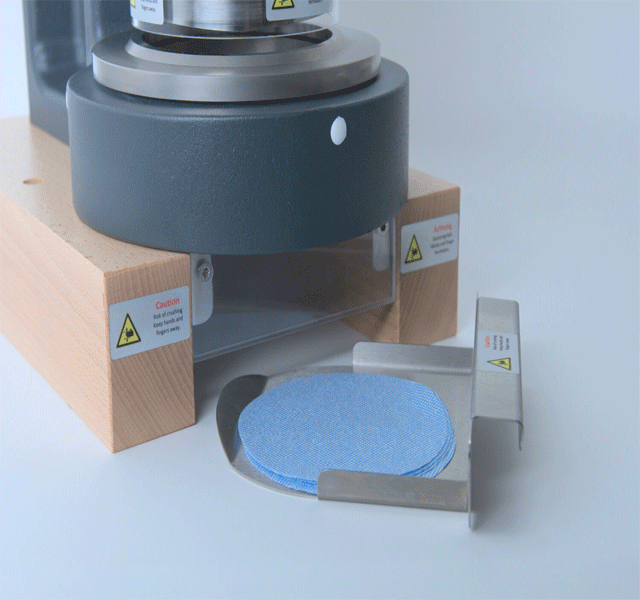

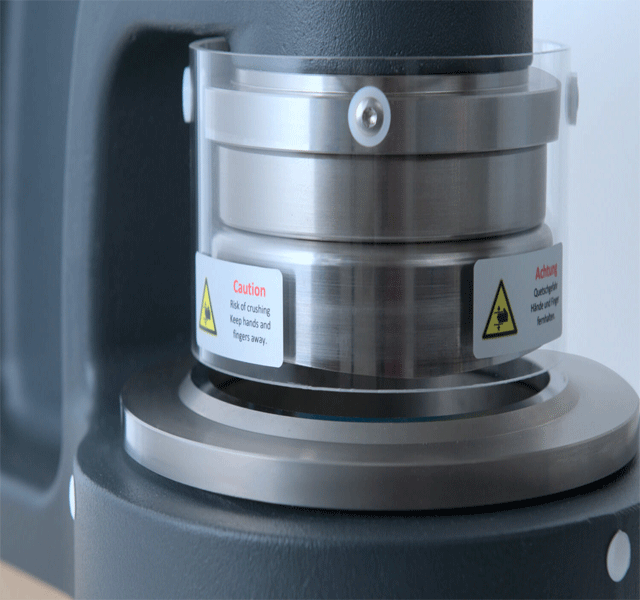

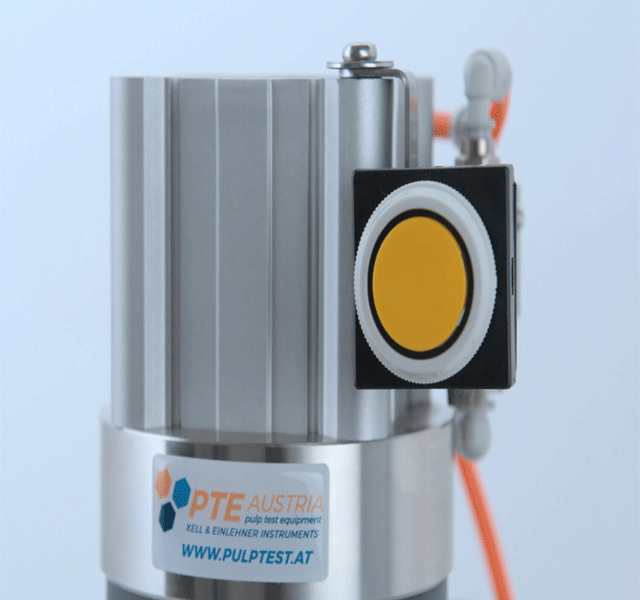

Robust sample punch for quick and easy preparation of square or circular test specimens, either for basis weight determination or as sample preparation for bending stiffness, Elmendorf tear tests or double fold tests. The grammage ranges from 30 to 1 000 g/m² and the density up to 4 mm. The device is equipped with a hand switch and protective glass to ensure safe operation.

Connections

Compressed air Air hose for compressed air connection with Ø 6 mm (400 – 600 kPa).

Models

Code Method Associated standard Sample size
P.105.100 Elmendorf ISO 1974 50 x 63 mm
P.105.110 Elmendorf ISO 1974 76 x 63 mm
P.105.120 Elmendorf TAPPI T414 53 x 63 mm
P.105.130 Elmendorf n/a 63 x 63 mm
P.105.140 Bending stiffness ISO 2493 38 x 80 mm
P.105.150 Bending stiffness TAPPI T556 38 x 76 mm
P.105.160 Double fold ISO 5626 100 x 15 mm
P.106.005 Grammage n/a 4.99 cm² (round)
P.106.050 Grammage n/a 50 cm² (round)
P.106.100 Grammage ISO 536 100 cm² (round)
P.106.D15 Grammage n/a 15 mm (diameter)
