Somerville
For determining the splinter content and other particles in pulp suspensions.
Full Description
Shive Content Analyzer
Code: P.109.xxx
Device description

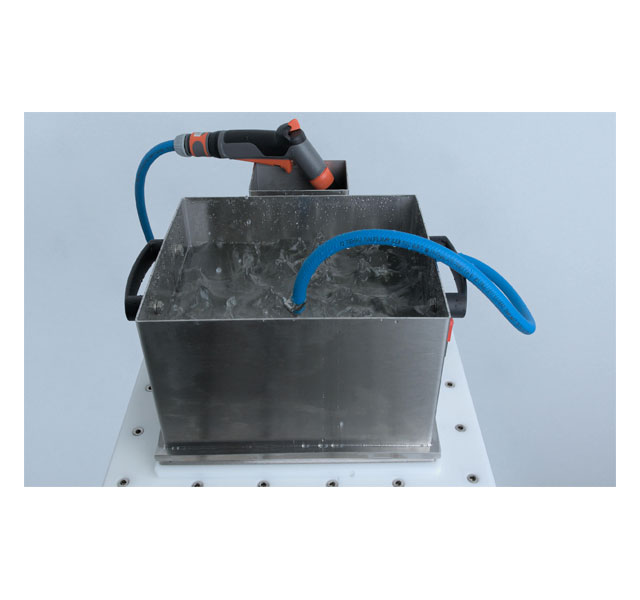

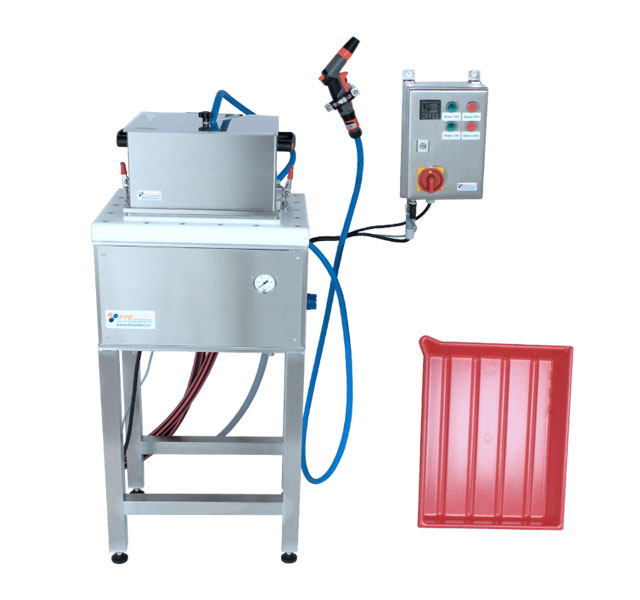

The Somerville shive content analyzer is built on a sturdy stainless-steel frame that supports the membrane chamber and the vessel. The control box can be mounted on the wall. The washing chamber and the vessel are separated by a replaceable slotted/perforated plate, with a ring nozzle featuring twelve horizontal openings attached precisely at the center of the plate. An overflow vessel regulates the water level in the washing chamber. The slotted/perforated plate can be easily removed or replaced using quick-release clamps.
Features
- highest quality and workmanship
- sturdy construction made of corrosion-resistant materials

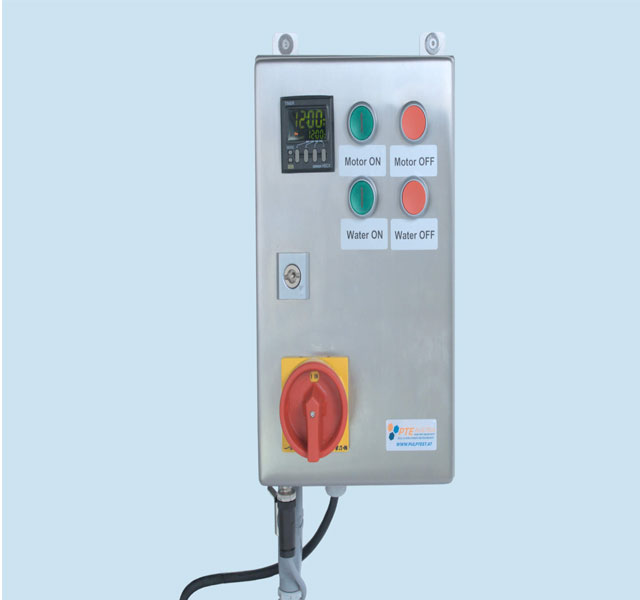

- control box ready for easily mounting on wall
- incl. calibrated ring nozzle (works with 8.6l/min at a pressure of 123.6 kPa)
- a drive motor integrated into the frame, rated IP55, drives the slotted screen via an eccentric at 690–700 rpm.
- device is supplied with one slot / round hole plate (see available models)
BauerMcNett and Somerville combined
PTE Austria reccomends to combine BauerMcNett and Somerville to achieve even more precision

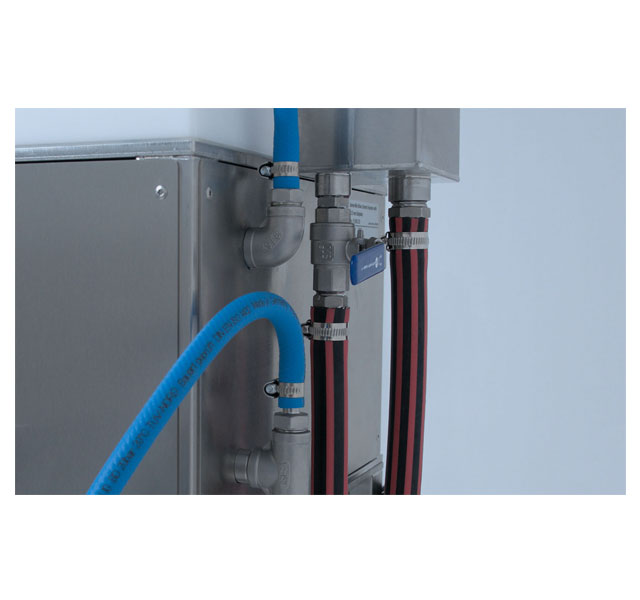

Connections
| Voltage | 230 V, 50 Hz AC |
|---|---|
| Water | min. 125 kPa |
Models
| Code | Device |
|---|---|
| P.109 | Somerville without plate |
| P.109.108 | Somerville with 0.08 mm slot plate |
| P.109.110 | Somerville with 0.10 mm slot plate |
| P.109.115 | Somerville with 0.15 mm slot plate |
| P.109.120 | Somerville with 0.20 mm slot plate |
| P.109.125 | Somerville with 0.25 mm slot plate |
| P.109.100 | Somerville mit 1,00 mm slot plate |
| P.109.150R | Somerville with 5.00 mm round hole plate |
| P.109.107R | Somerville with 0.70 mm round hole plate |
| Additionally available slot / round hole plates | |
| Code | Article |
| P.109.008S | 0.08 mm slot plate |
| P.109.010S | 0.10 mm slot plate |
| P.109.015S | 0.15 mm slot plate |
| P.109.020S | 0.20 mm slot plate |
| P.109.025S | 0.25 mm slot plate |
| P.109.100S | 1.00 mm slot plate |
| P.109.050R | 5.00 mm round hole plate |
| P.109.007R | 0.70 mm round hole plate |
Applicable standards
TAPPI T275, UM242; PAPTAC C.11P
