Speed Dryer
For drying paper and pulp sheets or for determining the mass of sludge.
Also searched as: speed dryer, sheet dryer, pulp sheet drying, paper drying, T205
Full Description
CODE: P.101.XXX
Device description

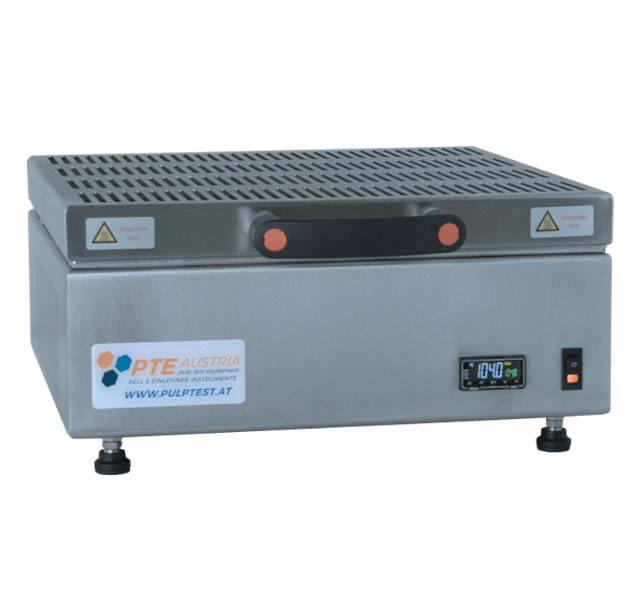

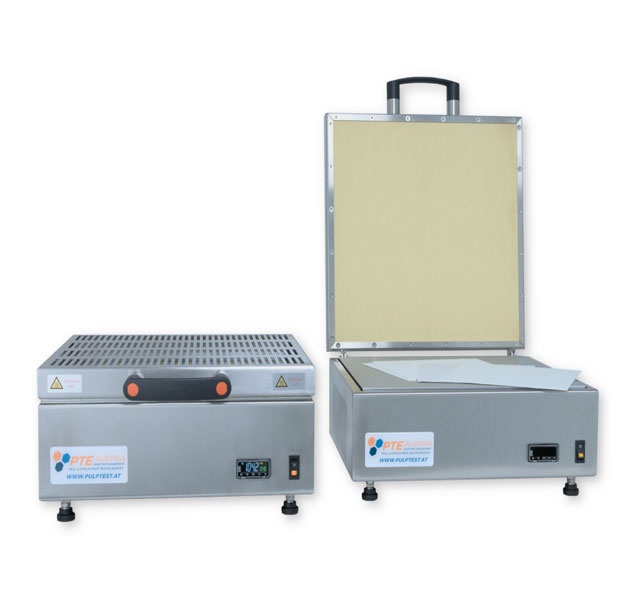

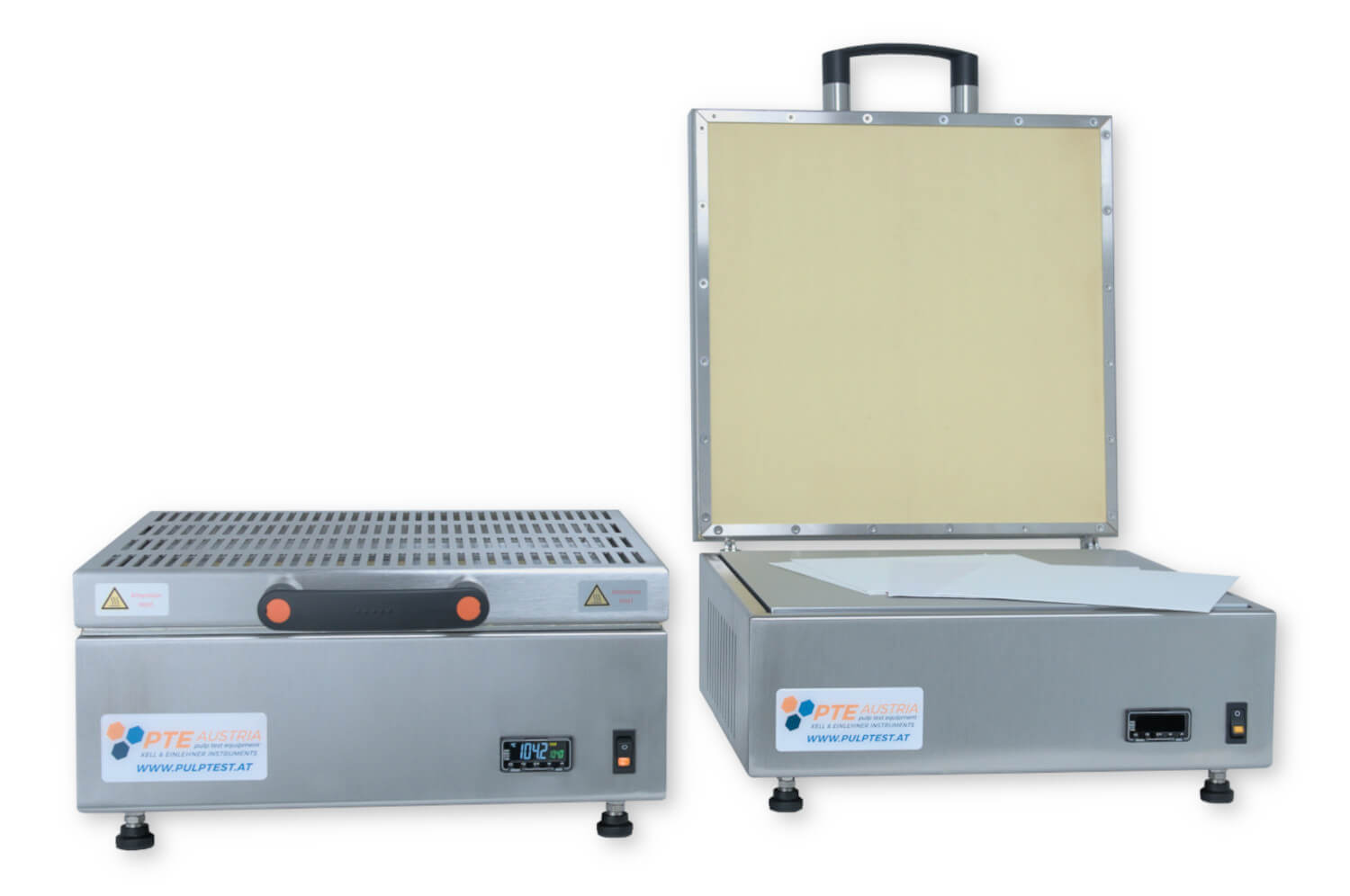

The Speed Dryer is a sturdy device with a high-quality stainless steel housing that surrounds the aluminum heating plate. The housing prevents contact with the heating plate. The lightweight cover is lined with a special fabric to press the sheet being dried against the heating plate during the drying process and prevent the sheet from warping. The maximum temperature is 180°C. Four different sizes are available. The largest model can dry up to six TAPPI standard sheets at the same time.
Features
- highest quality and workmanship
- sturdy stainless steel housing
- special heating plates for even heat distribution
- light-weight dryer lids
- ON/OFF switch on the front of the device

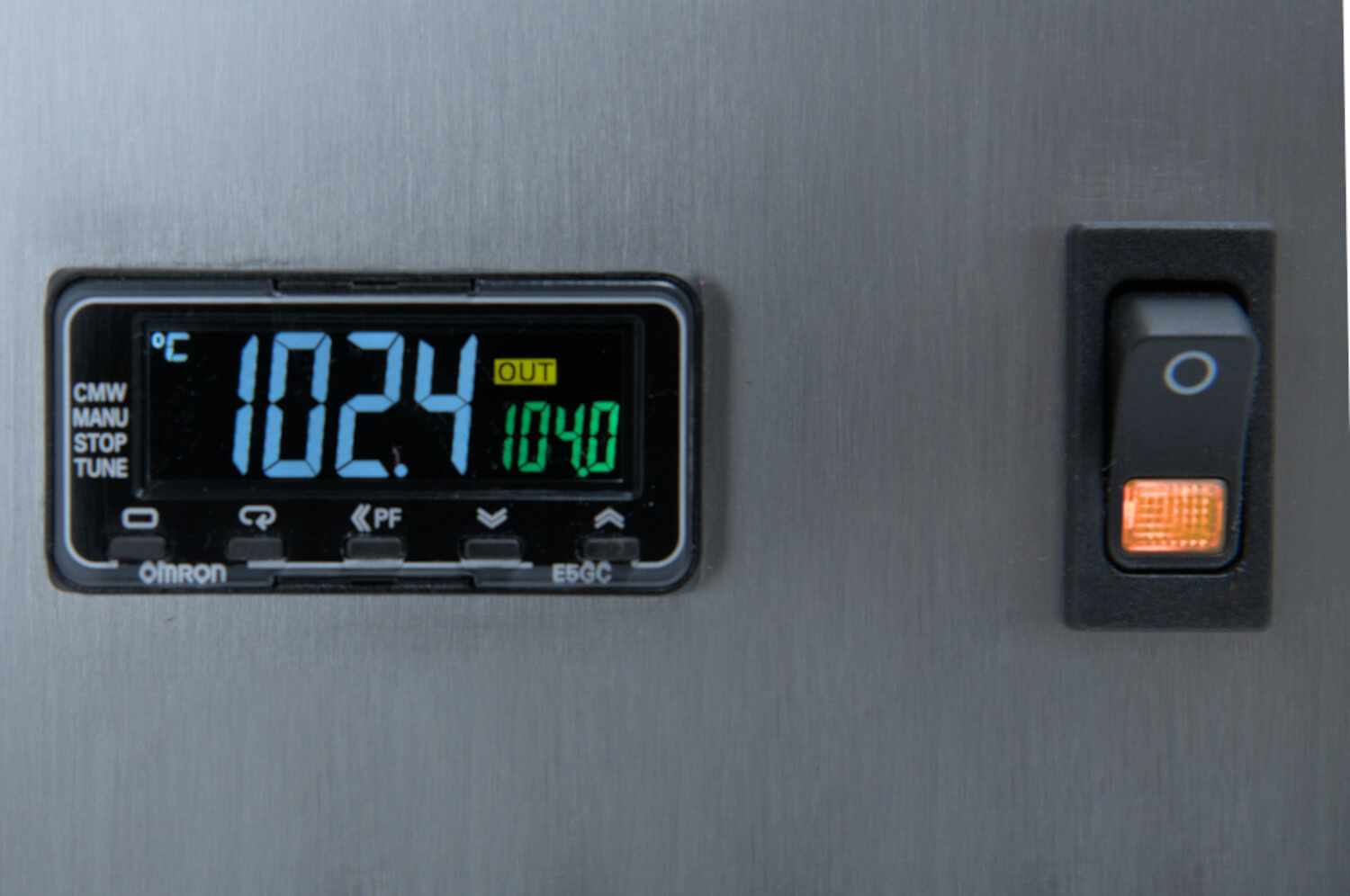

- adjustable temperature (up to 180°C ± 1°C max deviation)
- highly breathable dryer fabric for optimal steam evaporation
- easily exchangeable spare dryer cloth
Connections

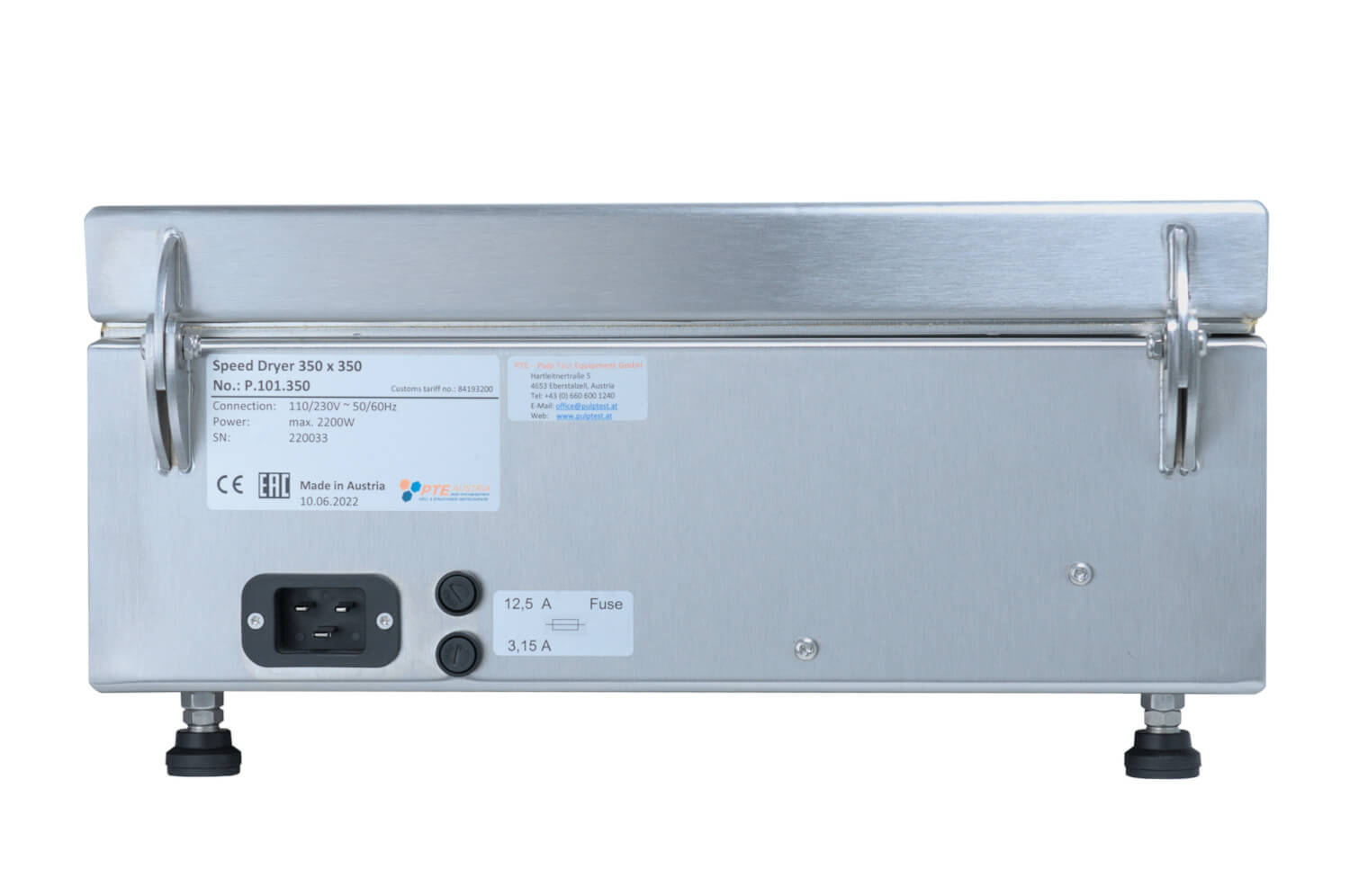

| Voltage | 110–240 V, 50/60 Hz AC |
Models
| Code | Size |
|---|---|
| P.101.350 | 350 x 350 mm |
| P.101.480 | 480 x 480 mm |
| P.101.580 | 580 x 430 mm |
| P.101.900 | 900 x 400 mm |
Applicable standards
TAPPI T205
