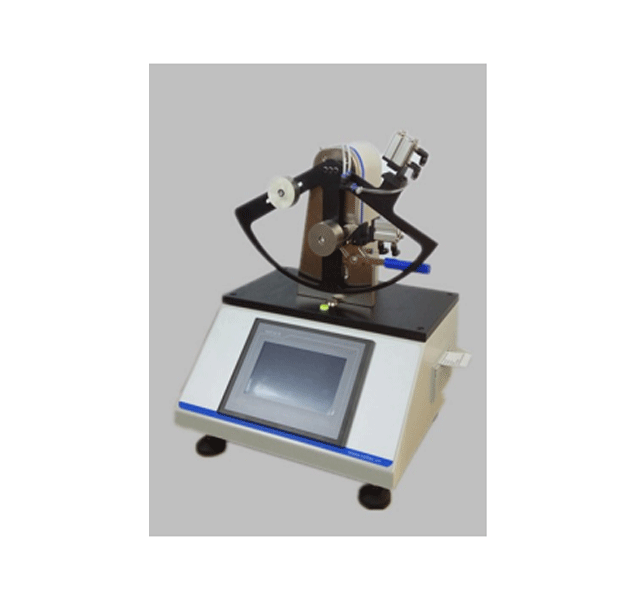

TGT-01 Tearing Tester
TGT-01 Tearing Tester is applicable in the tearing test of films, sheets, flexible PVC, PVC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textile and non-woven, etc.
Full Description
CHARACTERISTICS
-
Automatic and electronic measurement;
-
Pneumatic specimen clamping and pendulum releasing;
-
Rapid force range selection;
-
Multiple capacities of pendulum;
-
Multi-testing units;
-
RS232 interface;
PRINCIPLE
Lift the pendulum up to a certain height, enable it to have a certain potential energy. The pendulum tears the specimen while swinging down. Computer calculates the decreasing energy caused by tearing so as to obtain the needed force for tearing.
CONFIGURATION
Standard:
Mainframe, one basic pendulum, one augmenting weight, one check weight, communication cable, software.
Optional:
-
Basic pendulum: 200gf, 1600gf
-
Augmenting weight: 400gf, 800gf, 3200gf, 6400gf
-
Check weight: 200gf, 400gf, 800gf, 1600gf, 3200gf, 6400gf, and sampling knife.
Specifications
| Pendulum Capacities | 200gf (400gf, 800gf, 1600gf, 3200gf, 6400gf) |
|---|---|
| Gas Source Pressure | 0.6MPa (users provide gas source themselves) |
| Gas Inlet | Ø4mm polyurethane pipe |
| Dimensions | 480mm(L) × 380mm(B) × 560mm(H) |
| Power | AC 220V, 50Hz |
| Net Weight | 23.5kg |
Applicable standards
ASTM D1922, ASTM D1424, ASTM D689, TAPPI T414, ISO 6383, ISO 1974
